United States General Dynamics Land Systems

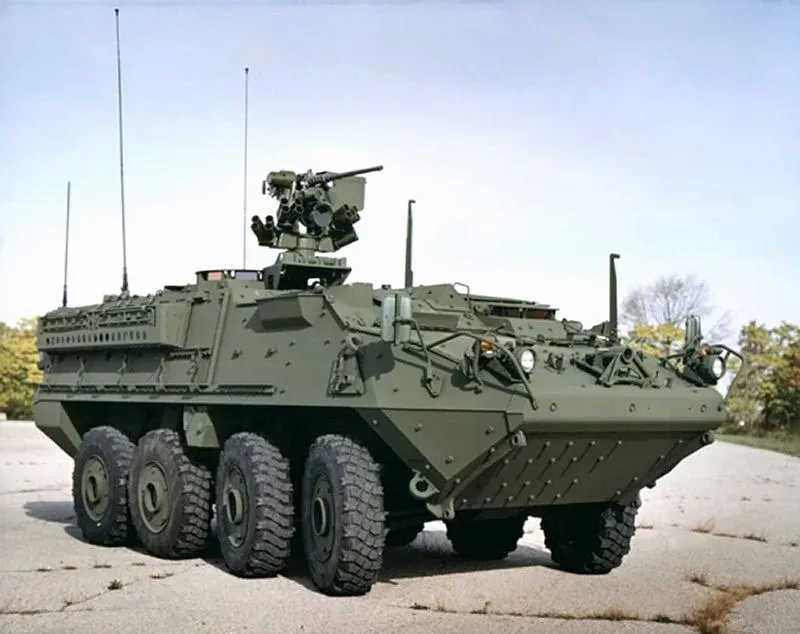

M1126 Stryker
Eight-wheeled armored combat vehicle family built by General Dynamics Land Systems for the U.S. Army's medium-weight Stryker Brigade Combat Teams, valued for rapid strategic deployability by air.
In service since 2002 · 4 operator countries
Compiled from public sources ·primary reference ↗ ·last verified 2026-07-02
100
km/h
500
km range
19,000
kg
💲 ≈ $4,900,000, Approximate unit cost
Procurement snapshot
Availability & export
US ITAR-controlled
Export needs U.S. State Dept (DDTC) approval; end-use & re-transfer restrictions apply.
Channel: Foreign Military Sales (FMS) or Direct Commercial Sale
Fielded & proven
Established · 4 operators
In service since 2002. Status: active · ~4,500 built.
Lifecycle cost (est.)
$12M – $17M
Acquisition is only ~30% of lifecycle cost, operating & support dominate over ~30 yrs. Rough 2.5–3.5× the unit price.
Interoperability
No standardised NATO calibre / datalink detected in public specs.
Derived guidance from public data, export regime by country of origin, lifecycle from the GAO ~30% acquisition rule. Verify eligibility, pricing and offsets with the manufacturer and your acquisition authority.
Full specifications
Performance
Speed, range, altitude and engagement capability.
- Max speed
Maximum level speed. For aircraft this is at optimal altitude; for ground vehicles, top road speed. Higher means faster response and better kinematic performance.
- 100 km/h Stronger than 68% of IFVs
- Range
Maximum distance: ferry range for aircraft, operational range for vehicles, maximum engagement distance for missiles. Higher means more standoff or persistence.
- 500 km Stronger than 27% of IFVs
Firepower
Armament, payload and guidance.
- Main armament
Primary weapon: main gun, cannon or missile type.
- 12.7 mm M2 machine gun (remote weapon station)
- Secondary armament
Additional weapons: coaxial MG, remote weapon station, gun pods.
- 40 mm Mk 19 grenade launcher (optional)
Protection
Armor, countermeasures and survivability.
- Armor
Armor technology: composite, modular, ERA-fitted, uranium-ceramic. Exact compositions are classified.
- Steel monocoque hull with appliqué and slat armor options
- Countermeasures
Self-protection: chaff, flares, DIRCM, towed decoys, smoke dischargers, jammers.
- smoke grenade launchers
- NBC protection
Sealed crew compartment with overpressure filtration for nuclear/biological/chemical environments.
- Yes
Physical
Dimensions, weight and crew.
- Length
Overall length including gun/probe where applicable.
- 6.95 m
- Width
Overall width, matters for rail/road transport of vehicles.
- 2.72 m
- Height
Overall height. Lower profile is harder to spot and hit for ground vehicles.
- 2.64 m
- Combat weight
Fully loaded weight. Lighter eases transport and bridging limits; heavier often means more armor.
- 19,000 kg
- Crew
Personnel required to operate. Fewer reduces exposure; autoloaders trade a loader for mechanical complexity.
- 2
- Troop capacity
Number of embarked troops/passengers (IFV, APC, transport). Higher carries more.
- 9 Stronger than 79% of IFVs
Propulsion
Engine, power and fuel.
- Engine
Powerplant model and type.
- Caterpillar C7 diesel
- Engine power
Engine output power. Higher moves more weight faster.
- 350 hp Stronger than 31% of IFVs
- Propulsion type
Turbofan, turboshaft, diesel, gas turbine, solid-fuel rocket, ramjet…
- Diesel, 8x8 wheeled
Program
Cost, production scale and operators.
- Unit cost
Approximate flyaway/unit cost where public. Defense pricing varies hugely by contract, offsets and configuration. Lower is cheaper.
- $4,900,000
- Units built
Total production run. Higher means proven manufacturing, mature logistics and spares availability.
- 4,500 Stronger than 87% of IFVs
- Operator countries
Number of countries operating the system. More operators means broader support ecosystem.
- 4 Stronger than 67% of IFVs
Specifications compiled from public General Dynamics Land Systems and reference sources ↗. Published defense figures are approximations, treat comparisons as directional. Last verified 2026-07-02.
Compare with rivals
See how it stacks up
Rheinmetall Puma
General Dynamics Land Systems Ajax Frequently asked questions
What is the top speed of the General Dynamics Land Systems M1126 Stryker? +
The General Dynamics Land Systems M1126 Stryker has a maximum speed of 100 km/h.
What is the range of the General Dynamics Land Systems M1126 Stryker? +
The General Dynamics Land Systems M1126 Stryker has a maximum range of 500 km.
How much does the General Dynamics Land Systems M1126 Stryker weigh? +
The General Dynamics Land Systems M1126 Stryker has a combat weight of 19,000 kg.
How many crew does the General Dynamics Land Systems M1126 Stryker require? +
The General Dynamics Land Systems M1126 Stryker requires a crew of 2.
What is the main armament of the General Dynamics Land Systems M1126 Stryker? +
The General Dynamics Land Systems M1126 Stryker's primary weapon is the 12.7 mm M2 machine gun (remote weapon station).
What engine does the General Dynamics Land Systems M1126 Stryker use? +
The General Dynamics Land Systems M1126 Stryker is powered by the Caterpillar C7 diesel.
What is the General Dynamics Land Systems M1126 Stryker used for? +
The General Dynamics Land Systems M1126 Stryker is a ifv / apc typically used for infantry combat.
How many countries operate the General Dynamics Land Systems M1126 Stryker? +
The General Dynamics Land Systems M1126 Stryker is operated by 4 countries.
How much does the General Dynamics Land Systems M1126 Stryker cost? +
The General Dynamics Land Systems M1126 Stryker has an approximate unit cost of 4,900,000 USD. Defense pricing varies by contract, offsets and configuration, treat this as directional.
